The HFM-200/HFC-202 is Teledyne Hastings’ flexible, general-purpose series of mass flow meters and controllers. Featuring reliability and stability, the 200 Series is chosen by OEM’s for its very stable performance with varying ambient conditions. A wide choice of elastomer seals makes this flow controller compatible with most gases.
The HFM-200 / HFC-202 meters and controllers have flow ranges from 0-10 sccm to flows of 0-25 slm; provide analog outputs, are constructed of stainless steel and have normally closed valves. The full-scale range is specified by the end-user. A NIST traceable calibration certificate is standard. Many corrosive gases and pressures up to 1000 PSIG are easily measured. Cleaning for oxygen service is available.
The HVG-2020A vacuum gauge from Teledyne Hastings is a media-isolated, gas composition independent, the piezoresistive instrument that provides accurate pressure measurement throughout the rough vacuum region.
The HVG-2020A is easy to install, and the optional display provides the users with several different views or modes of operation. The HVG-2020A is very flexible and can provide both analog and digital output to easily integrate into process control. A wide variety of linear analog output signals may be selected.
Teledyne Hastings Instruments products represent over 70 years of experience in the design and manufacture of gas flow instrumentation. The high flow meters and controllers featured in this document are based on the 300 Series line of flow sensors. The 300 Series transducer is a patented thermal-based flow sensor. This sensor is designed to provide an exceptionally linear response to changing flow rates. In addition, the electronics associated with the sensor are precisely tuned to give fast response time.

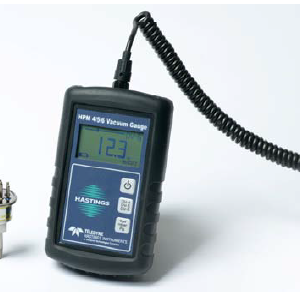

The HPM 4/5/6 features a precision A/D converter along with a microprocessor to measure the thermocouple vacuum gauge tube’s signal output. The microprocessor converts the measurement to a pressure reading by employing the gauge tube’s well-defined output/pressure relationship. The result is displayed using a bright, easy-to-read graphical display. Tubes are matched and interchangeable without calibration adjustments.
